ELM327 WiFi V1.5 OBD2 Car Diagnostic Scanner

ELM327 WiFi V1.5 OBD2 Car Diagnostic Scanner

Take full control of your vehicle's health with the ELM327 WiFi V1.5 OBD2 scanner. Connect wirelessly to your smartphone, tablet, or laptop and access real-time engine data, read and clear fault codes, and keep your check engine light from ruining your day — all for a fraction of the cost of a shop visit.

📋 Specifications

• Chipset: ELM327 V1.5
• Connectivity: WiFi (2.4 GHz)
• OBD Standard: OBD-II / EOBD compliant
• Crystal Oscillator Frequency: 4 MHz
• Operating Voltage: 12V DC (vehicle OBD-II port powered)
• Compatible Vehicles: All OBD-II compliant vehicles (1996 and newer — US market)

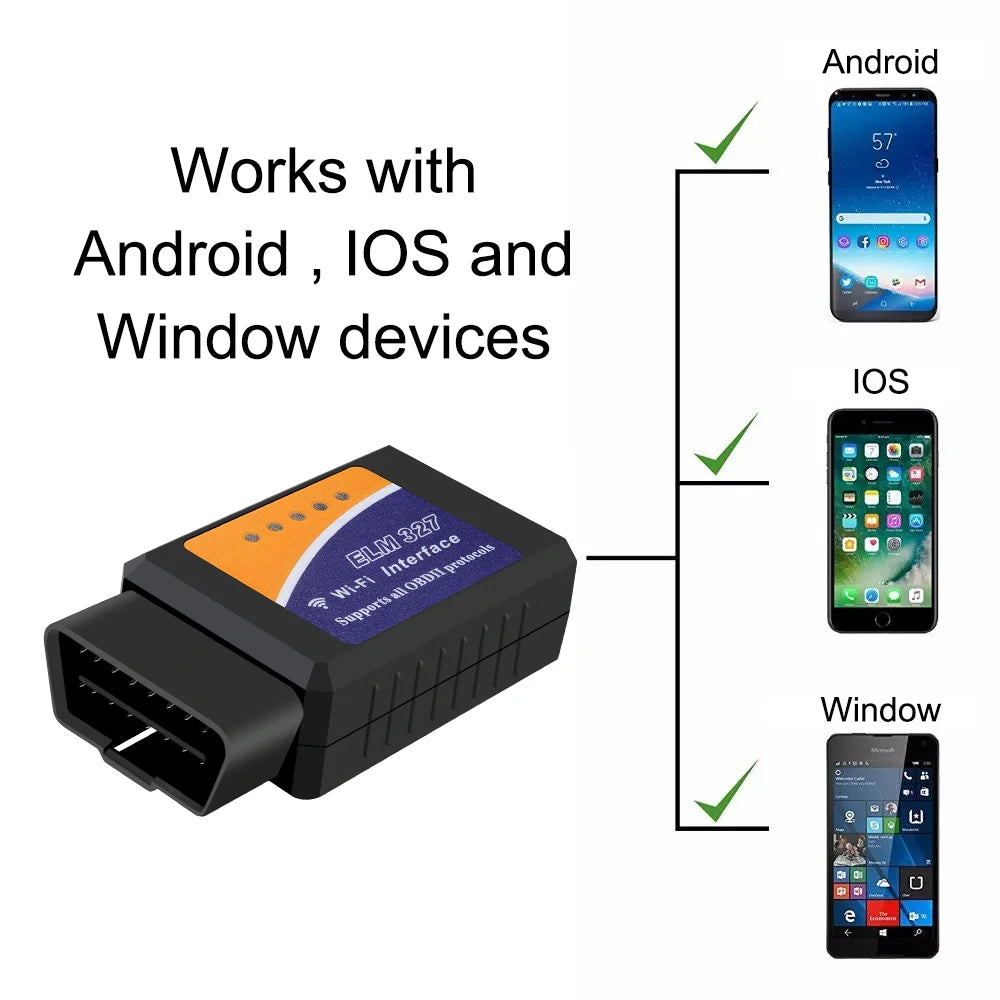

• Compatible OS: iOS, Android, Windows
• Connector: Standard OBD-II 16-pin
• Weight: 47g

🔌 Supported OBD-II Protocols (All 9)

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO 9141-2 (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO 14230-4 KWP (fast init, 10.4 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO 15765-4 CAN (29-bit ID, 250 Kbaud)

📊 Live Data Parameters

• Engine RPM
• Vehicle Speed
• Coolant Temperature
• Intake Air Temperature
• Intake Manifold Pressure
• Mass Air Flow (MAF) Rate
• Absolute Throttle Position
• Calculated Engine Load
• Short & Long Term Fuel Trim
• Fuel System Status & Fuel Pressure
• Timing Advance
• O2 Sensor Voltages & Associated Fuel Trims

✅ Key Features

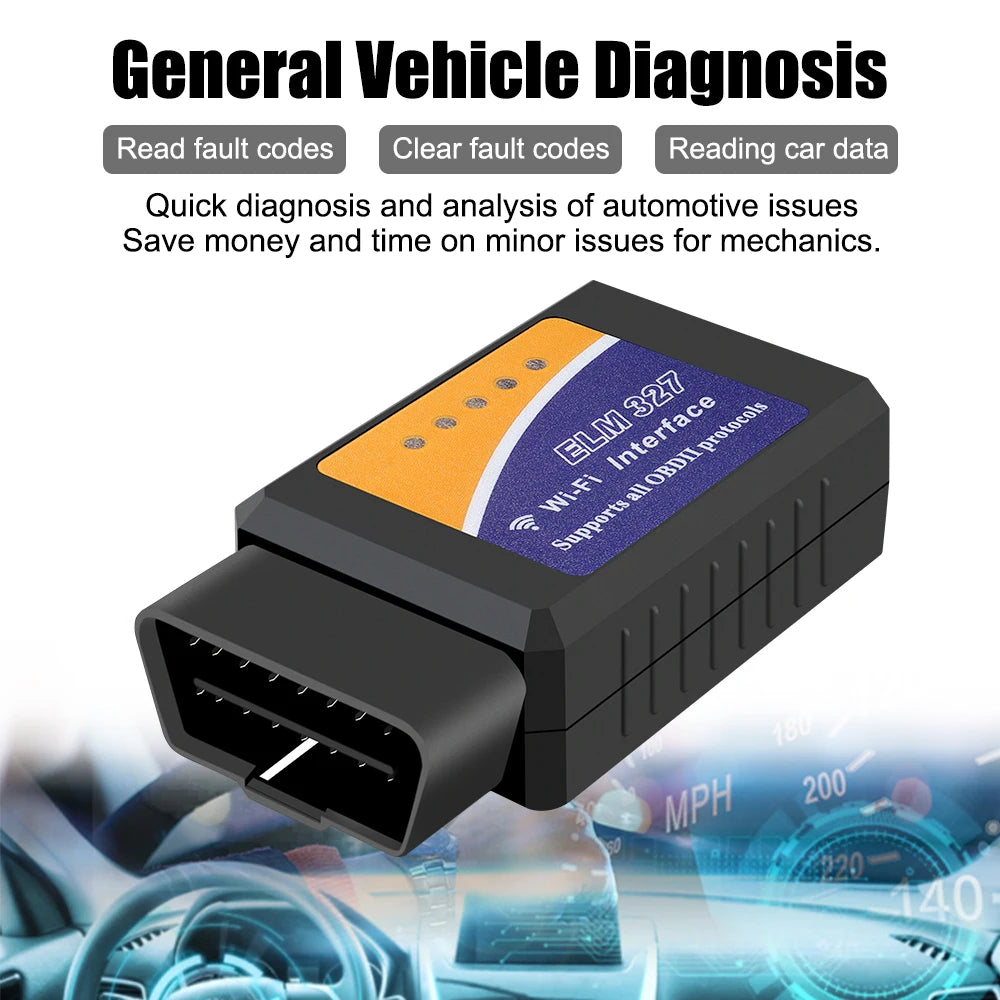

• Read and clear Diagnostic Trouble Codes (DTCs) — generic and manufacturer-specific
• Turn off the Check Engine / MIL light
• Access freeze frame data to capture conditions when a fault occurred
• I/M Readiness status check (emissions test prep)
• O2 sensor test results
• On-board monitoring test results
• Over 3,000 generic DTC definitions built-in
• Supports AT commands: ATAL and ATPPS
• Compatible with popular apps including Torque (Android), OBD Fusion, Car Scanner, and more

📦 Package Contents

• 1 × ELM327 WiFi V1.5 OBD2 Car Diagnostic Scanner
